1 目的

用新的服务器来替换旧的服务器，新的服务器要实现以下功能：

1.1 搭建域名解析服务器

对公司的网站进行域名解析服务

1.2 对公司网站进行加密服务

使用ssl对公司网站进行ssl加密服务

1.3 邮件服务器所实现的功能

实现邮件收发的功能
实现邮件的垃圾过滤和杀毒的功能
实现网页邮件服务的功能
实现对邮件用户配额,附件大小配置，修改个人密码的功能
实现通过网页管理邮件用户的功能

2 邮件域名和网站服务器

2.1 安装操作系统

下载debian-8.8.0的操作系统镜像

wget http://ftp.cae.tntech.edu/debian-cd/dvd/debian-8.8.0-amd64-DVD-1.iso

2.1.1 分区规划

/		50G
swap	15G
/var	1T

2.1.2 网络规划

主机名:mail.linx-info.com
用户:rocky	密码:rocky
eth1: inet 172.17.201.8/16 brd 172.17.255.255
eth3: inet 172.31.255.3/24 brd 172.31.255.255

2.2 所使用的软件包

2.2.1 通过软件源来进行下载的软件包

dns服务使用的软件是bind9

named -v
BIND 9.9.5-9+deb8u15-Debian (Extended Support Version)

web服务使用的软件是nginx php

nginx -v
nginx version: nginx/1.12.2

php7.0 -v
PHP 7.0.27-1~dotdeb+8.1 (cli) ( NTS )

数据库使用的是mysql

mysqld --version
mysqld  Ver 5.5.59-0+deb8u1 for debian-linux-gnu on x86_64 ((Debian))

邮件服务使用的软件是postfix dovecot

postconf -d | grep mail_version
mail_version = 2.11.3
milter_macro_v = $mail_name $mail_version

dovecot --version
2.2.13

垃圾邮件过滤软件使用的是spamassassin

spamassassin --version
SpamAssassin version 3.4.0
  running on Perl version 5.20.2

邮件杀毒软件使用的是clamav

freshclam --version
ClamAV 0.99.3/24373/Thu Mar  8 09:11:49 2018

2.2.2 从网站中下载的软件

邮件服务器管理使用的软件是postfixadmin

http://nchc.dl.sourceforge.net/project/postfixadmin/postfixadmin/postfixadmin-3.0/postfixadmin-3.0.tar.gz
postfixadmin-3.0

网页邮箱使用的是roundcube

https://github.com/roundcube/roundcubemail/releases/download/1.3.3/roundcubemail-1.3.3-complete.tar.gz
roundcubemail-1.3.3

3 新服务器网络配置和软件源配置

搭建的是debian-8.8.0操作系统

3.1 网络配置

vi /etc/network/interfaces

source /etc/network/interfaces.d/*

auto lo
iface lo inet loopback
auto eth3
iface eth3 inet static
        address 172.31.255.3
        netmask 255.255.255.0
auto eth1
iface eth1 inet static
        address 172.17.201.8
        netmask 255.255.0.0
        gateway 172.17.0.254

重启网络

/etc/init.d/networking restart

3.2 更改软件源配置和更新软件列表

3.2.1 修改软件源配置

把/etc/apt/sources.list修改成以下配置

deb http://mirrors.163.com/debian/ jessie main non-free contrib
deb http://mirrors.163.com/debian/ jessie-updates main non-free contrib
deb http://mirrors.163.com/debian/ jessie-backports main non-free contrib
deb-src http://mirrors.163.com/debian/ jessie main non-free contrib
deb-src http://mirrors.163.com/debian/ jessie-updates main non-free contrib
deb-src http://mirrors.163.com/debian/ jessie-backports main non-free contrib
deb http://mirrors.163.com/debian-security/ jessie/updates main non-free contrib
deb-src http://mirrors.163.com/debian-security/ jessie/updates main non-free contrib
deb http://packages.dotdeb.org jessie all
deb-src http://packages.dotdeb.org jessie all

3.2 更新软件列表和操作系统升级

aptitude update -y

由于没有公钥，无法验证下列签名： NO_PUBKEY 9AA38DCD55BE302B
第一种:
gpg --keyserver pgpkeys.mit.edu --recv-key 9AA38DCD55BE302B
gpg -a --export  9AA38DCD55BE302B | sudo apt-key add -
第二种:
apt-key adv --keyserver keyserver.ubuntu.com --recv-keys 9D6D8F6BC857C906

aptitude update

aptitude upgrade

4 安装配置dns服务

安装bind9是要能对公司各个网站提供解析服务,能够实现旧机器的所有解析功能,并且把rd.in.linx域迁移到这台机器上

4.1 安装bind9

aptitude install bind9 -y

4.2 修改bind9的配置文件

4.2.1 配置bind9的配置文件和域文件

拷贝的是旧机器中对应的域名配置和bind9服务的配置拷贝到对应的路径下

tar xf bind-cfg.tar.gz
cp etc/bind/* /etc/bind
cp var/cache/bind/* /var/cache/bind

4.2.2 在配置文件上添加rd.in.linx域

在/etc/bind/named.conf.local的最后面添加

zone "rd.in.linx" IN{
	type master;
	file "rd.in.linx.zone";
};

4.2.3 创建rd.in.linx.zone域名文件

创建/var/cache/bind/rd.in.linx.zone

$ORIGIN  rd.in.linx.
; BIND reverse data file for empty rfc1918 zone
;
; DO NOT EDIT THIS FILE - it is used for multiple zones.
; Instead, copy it, edit named.conf, and use that copy.
;
$TTL    86400
@       IN      SOA     rd.in.linx. root.rd.in.linx. (
						1				; Serial
						604800			; Refresh
						86400			; Retry
						2419200         ; Expire
						86400 )			; Negative Cache TTL
;
@       IN      NS      rd.in.linx.
rd.in.linx.     IN A 172.31.255.3
dns             IN A 172.31.255.3
cloud           IN A 172.31.255.3
;gitlab         IN      A       172.17.150.10
;gitlab         IN      A       172.16.6.190
gitlab          IN      A       172.17.201.11
gitlab-rd2              IN      A       172.16.0.248
gitlab-mirrorcd         IN      A       172.16.0.249
gitlab-ci       IN      A       172.17.150.10
ibarn           IN      A       172.17.150.30
;erp            IN      A       172.17.150.20
erp             IN      A       172.17.201.9
gitlab-runner1  IN      A       172.17.150.31
gitlab-runner2  IN      A       172.17.150.32
gitlab-runner3  IN      A       172.17.150.33
gitlab-runner4  IN      A       172.17.150.34
gitlab-runner5  IN      A       172.17.150.35
wanna-build     IN      A       172.17.150.39
buildd          IN      A       172.17.150.40
bz              IN      A       172.17.0.251 ;dev2 bugzilla
ftp             IN      A       172.17.234.234 ;dev1 bugzilla
bugzilla        IN      A       172.16.0.4 ;dev1 bugzilla
rd-server       IN      A       172.16.0.4 ;dev1 rd-server
gitweb          IN      A       172.16.0.4 ;dev1 gitweb-server
cgit            IN      A       172.16.0.4 ;dev1 cgit-server
trac            IN      A       172.16.0.4 ;dev1 trac-server
testlink        IN      A       172.16.0.4 ;dev1 testlink-server
blog            IN      A       172.16.0.4 ;dev1 blog
ntp1            IN      A       172.31.255.8 ;ntp1
ntp2            IN      A       172.31.255.9 ;ntp2
tslog           IN      A       172.16.0.234 ;tslog.rd.in.linx
mirrors         IN      A       172.16.0.234 ;mirror.rd.in.linx
isoimage        IN      A       172.16.0.234 ;isoimage.rd.in.linx
gitblog         IN      A       172.17.150.22
qa              IN      A       172.17.150.22
oduser-doc              IN      A       172.17.150.22
oddev-doc               IN      A       172.17.150.22
search          IN      A       172.17.150.21
www             IN      A       172.17.150.21
42.builder      IN      A       172.16.0.250 ;4.2.builder
proxy           IN      A       172.16.0.250
pic             IN      A       172.17.150.17; pictures of linx
autotest        IN      A       172.19.135.254
linx-info       IN      A       172.31.255.3
exam            IN      A       172.17.150.24
yy              IN      A       172.16.3.17

修改解析服务器地址

vi /etc/resove.conf

nameserver 172.17.201.8

重启bind9服务查看状态

通过查看bind9状态,判断bind9的配置文件是否存在错误

/etc/init.d/bind9 restart
/etc/init.d/bind9 status

如果是以下状态说明bind9服务正常启动

● bind9.service - BIND Domain Name Server
	Loaded: loaded (/lib/systemd/system/bind9.service; enabled)
  Drop-In: /run/systemd/generator/bind9.service.d
			└─50-insserv.conf-$named.conf
	Active: active (running) since 四 2018-03-15 11:37:59 CST; 2min 3s ago
		Docs: man:named(8)
Main PID: 471 (named)
	CGroup: /system.slice/bind9.service
			└─471 /usr/sbin/named -f -u bind

4.3 测试dns服务器

使用dig命令进行测试解析(显示以下结果)

dig www.linx-info.com @172.17.201.8
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;www.linx-info.com.		IN	A
;; ANSWER SECTION:
www.linx-info.com.	604800	IN	A	172.31.255.3
;; AUTHORITY SECTION:
linx-info.com.		604800	IN	NS	ns.

dig mail.linx-info.com @172.17.201.8
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;mail.linx-info.com.		IN	A
;; ANSWER SECTION:
mail.linx-info.com.	604800	IN	A	172.31.255.3
;; AUTHORITY SECTION:
linx-info.com.		604800	IN	NS	ns

dig odoo.linx-info.com @172.17.201.8
;; QUESTION SECTION:
;odoo.linx-info.com.		IN	A
;; ANSWER SECTION:
odoo.linx-info.com.	604800	IN	A	172.31.255.3
;; AUTHORITY SECTION:
linx-info.com.		604800	IN	NS	ns

dig erp.rd.in.linx
;; QUESTION SECTION:
;erp.rd.in.linx.			IN	A
;; ANSWER SECTION:
erp.rd.in.linx.		86400	IN	A	172.17.201.9
;; AUTHORITY SECTION:
rd.in.linx.		86400	IN	NS	rd.in.linx.
;; ADDITIONAL SECTION:
rd.in.linx.		86400	IN	A	172.31.255.3

5 安装配置web服务

安装配置web服务，并且使用证书进行ssl加密

如果已经安装了apache,需先停止apache服务

5.1 安装nginx网页服务

/etc/init.d/apache2 stop
/etc/init.d/apache2 status
aptitude -y install nginx

5.2 生成和配置证书

5.2.1 修改openssl配置

cd /etc/ssl
mkdir CA newcerts
cd CA
touch index.txt serial
cd /etc/ssl
vi openssl.cnf
修改[CA_default]区域设置内容
dir		= /etc/ssl		#CA路径
certs		= $dir/certs		#发给其他的人的证书
crl_dir		= $dir/crl		#证书吊销列表,不属于必须创建的目录
database	= $dir/CA/index.txt	    #存放生成证书文件索引  需要手动创建的文件
new_certs_dir	= $dir/newcerts	 #新生成的证书存放地  需要手动创建

certificate	= $dir/certs/cacert.pem
serial= $dir/CA/serial	 #序列号，自己建的每一个证书都有一个序列号，需创建该文件，并指定从几开始
crlnumber= $dir/crlnumber
crl= $dir/crl.pem
private_key= $dir/private/cakey.pem
RANDFILE= $dir/private/.rand
x509_extensions	= usr_cert

name_opt	= ca_default
cert_opt	= ca_default

default_days	= 365
default_crl_days= 30
default_md	= default
preserve	= no
允许从外部站点获取证书
# For the CA policy
[ policy_match ]
countryName		= optional
stateOrProvinceName	= optional
organizationName	= optional
organizationalUnitName	= optional
commonName		= supplied
emailAddress		= optional


[ req_distinguished_name ]
countryName			= Country Name (2 letter code)
countryName_default		= CN  #证书所属国家
countryName_min			= 2
countryName_max			= 2

stateOrProvinceName		= State or Province Name (full name)
stateOrProvinceName_default	= Beijing    #证书所属省会

localityName			= Locality Name (eg, city)
localityName_default		= Beijing    #证书所属城市

0.organizationName		= Organization Name (eg, company)
0.organizationName_default	= Linx Technology Co.,Ltd.    #证书所属城市

5.2.2 如何生成证书

我们使用旧机器的证书，进行加密，因此跳过生成证书这一步

生成CA服务器的根证书

生成CA服务器自己的私钥
openssl genrsa 1024 >private/cakey.pem
为保护CA私钥的安全性，改变私钥文件的权限
chmod 600 private/*
使用CA的私钥生成CA服务器自己的认证证书
openssl req -new -key private/cakey.pem -x509 -out  certs/cacert.pem
注意：这一步骤生成的cacert.pem文件即为CA服务器的根证书

生成Apache服务的认证证书

生成Apache服务的私钥
openssl genrsa 1024 >private/apache2.key
为保护CA私钥的安全性，改变私钥文件的权限
chmod 600 private/*
使用CA的私钥生成证书请求文件(Certificate Signing Request)
openssl req -new -key private/apache2.key -out newcerts/apache2.csr
通过证书请求获取Apache服务的认证证书
向CA服务器提交申请文件apache2.csr，CA服务器根据该文件签署生成证书
openssl  ca  -in  newcerts/apache2.csr  -out  newcerts/apache2.crt
注意：这一步骤生成的apache2.crt文件即为Apache服务的认证证书

5.2.3 添加证书

因为有旧机器上的证书,所以不用重新生成新证书,拷贝原服务器里证书到新的服务器中

cd new-mail
cp ssl-cert-snakeoil.pem /etc/ssl/certs/ssl-cert-snakeoil.pem
cp ssl-cert-snakeoil.key /etc/ssl/private/ssl-cert-snakeoil.key
cp mail.crt /etc/ssl/newcerts/
cp mail.key /etc/ssl/private/
cp 配置文件存档/CA/etc/ssl/certs/apache2.crt /etc/ssl/certs/
cp 配置文件存档/CA/etc/ssl/private/apache2.key /etc/ssl/private/
cp www.linx-info.com /etc/ssl/certs/ -r
chmod -R 600 /etc/ssl/certs
chmod -R 600 /etc/ssl/private
chmod -R 600 /etc/ssl/newcerts

5.3 配置nginx

5.3.1 邮件管理网页的配置

创建/etc/nginx/sites-available/postfixadmin.linx-info.com

server {
		listen 80;
		server_name postfixadmin.linx-info.com;
		return 301 https://$server_name$request_uri;
}

server {
		listen          443 ssl;
		server_name     postfixadmin.linx-info.com;
		root            /var/www/postfixadmin-3.0;
		index           index.php;
		charset         utf-8;

		ssl_certificate           /etc/ssl/certs/ssl-cert-snakeoil.pem;
		ssl_certificate_key       /etc/ssl/private/ssl-cert-snakeoil.key;
		ssl_protocols             TLSv1.2;
		ssl_ciphers               HIGH:!aNULL:!MD5;
		ssl_prefer_server_ciphers on;
		ssl_session_cache         shared:SSL:10m;
		ssl_session_timeout       10m;
		ssl_ecdh_curve            secp521r1;

		location / {
				try_files $uri $uri/ index.php;
		}

		location ~* \.php$ {
				fastcgi_split_path_info ^(.+\.php)(/.+)$;
				include       fastcgi_params;
				fastcgi_pass  unix:/run/php/php7.0-fpm.sock;
				fastcgi_index index.php;
				include fastcgi_params;
				fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
				fastcgi_buffer_size 16k;
				fastcgi_buffers 4 16k;
		}
}

5.3.2 odoo网页代理转发的配置

创建/etc/nginx/sites-enabled/odoo.linx-info.com

server {
		listen 80;
		server_name odoo.linx-info.com;
#        return 301 https://$server_name$request_uri;
		location / {
				proxy_next_upstream error timeout invalid_header http_500 http_503 http_404;
				proxy_pass  http://erp.rd.in.linx:8069/  ;
				proxy_set_header Host odoo.linx-info.com;
				proxy_set_header X-Real-IP $remote_addr;
				proxy_set_header X-Forwarded-For  $proxy_add_x_forwarded_for;
		}
		access_log /var/log/nginx/odoo.linx-info.com.80.log;
}
server {
		listen 10000;
		server_name odoo.linx-info.com;
#        return 301 https://$server_name$request_uri;
		location / {
				proxy_next_upstream error timeout invalid_header http_500 http_503 http_404;
				proxy_pass  http://erp.rd.in.linx:8069/  ;
				proxy_set_header Host odoo.linx-info.com;
				proxy_set_header X-Real-IP $remote_addr;
				proxy_set_header X-Forwarded-For  $proxy_add_x_forwarded_for;
		}
		access_log /var/log/nginx/odoo.linx-info.com.10000.log;
}
server {
		listen          443 ssl;
		server_name     odoo.linx-info.com;
#ssl_certificate           /etc/ssl/certs/ssl-cert-snakeoil.pem;
#ssl_certificate_key       /etc/ssl/private/ssl-cert-snakeoil.key;
		ssl_certificate           /etc/ssl/certs/www.linx-info.com/cert.pem;
		ssl_certificate_key       /etc/ssl/certs/www.linx-info.com/privkey.pem;
		ssl_protocols             TLSv1.2;
		ssl_ciphers               HIGH:!aNULL:!MD5;
		ssl_prefer_server_ciphers on;
		ssl_session_cache         shared:SSL:10m;
		ssl_session_timeout       10m;
		ssl_ecdh_curve            secp521r1;

		location / {
				proxy_pass  http://erp.rd.in.linx:8069/;
		}
		location ~* \.php$ {
				fastcgi_split_path_info ^(.+\.php)(/.+)$;
				include       fastcgi_params;
				fastcgi_pass  unix:/run/php/php7.0-fpm.sock;
				fastcgi_index index.php;
				include fastcgi_params;
				fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
				fastcgi_buffer_size 16k;
				fastcgi_buffers 4 16k;
		}
		access_log /var/log/nginx/odoo.linx-info.com.443.log;
}

5.3.3 公司网站代理转发的配置

创建/etc/nginx/sites-enabled/www.linx-info.com

server {
		listen 80;
		server_name www.linx-info.com;
#        return 301 https://$server_name$request_uri;
		location / {
				proxy_next_upstream error timeout invalid_header http_500 http_503 http_404;
				proxy_pass  http://172.31.255.4/  ;
				proxy_set_header Host www.linx-info.com;
				proxy_set_header X-Real-IP $remote_addr;
				proxy_set_header X-Forwarded-For  $proxy_add_x_forwarded_for;
		}
		access_log  /var/log/nginx/www.linx-info.com.log;

}
server {
		listen *:443;
		ssl on;
		server_name www.linx-info.com;
		rewrite ^(.*) http://www.linx-info.com$1 permanent;
#ssl_certificate           /etc/ssl/certs/ssl-cert-snakeoil.pem;
#ssl_certificate_key       /etc/ssl/private/ssl-cert-snakeoil.key;
		ssl_certificate           /etc/ssl/certs/apache2.crt;
		ssl_certificate_key       /etc/ssl/private/apache2.key;
}

5.3.4 网页邮箱的网页配置

创建/etc/nginx/sites-enabled/mail.linx-info.com

server {
		listen 80;
		server_name mail.linx-info.com;
		return 301 https://$server_name$request_uri;
}

server {
		listen          443 ssl;
		server_name     mail.linx-info.com;
		root            /var/www/webmail;
		index           index.php;
		charset         utf-8;
#ssl_certificate           /etc/ssl/certs/ssl-cert-snakeoil.pem;
#ssl_certificate_key       /etc/ssl/private/ssl-cert-snakeoil.key;
		ssl_certificate           /etc/ssl/newcerts/mail.crt;
		ssl_certificate_key       /etc/ssl/private/mail.key;
		ssl_protocols             TLSv1.2 TLSv1 TLSv1.1;
#        ssl_ciphers               "EECDH+ECDSA+AESGCM:EECDH+aRSA+AESGCM:!aNULL:!eNULL:!LOW:!3DES:!MD5:!EXP:!PSK:!SRP:!DSS:!RC4";
		ssl_ciphers               HIGH:!aNULL:!MD5;
		ssl_prefer_server_ciphers on;
		ssl_session_cache         shared:SSL:10m;
		ssl_session_timeout       10m;
		ssl_ecdh_curve            secp521r1;

		location / {
				try_files $uri $uri/ index.php;
				client_max_body_size 30m;
		}

		location ~* \.php$ {
				fastcgi_split_path_info ^(.+\.php)(/.+)$;
				include       fastcgi_params;
				fastcgi_pass  unix:/run/php/php7.0-fpm.sock;
				fastcgi_index index.php;
				include fastcgi_params;
				fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
				fastcgi_buffer_size 16k;
				fastcgi_buffers 4 16k;
				client_max_body_size 100m;
		}
		access_log /var/log/nginx/mail.linx-info.com.log;
}

5.3.5 创建软连接


ln -s /etc/nginx/sites-available/postfixadmin.linx-info.com /etc/nginx/sites-enabled/postfixadmin.linx-info.com

5.3.6 测试并重启nginx,检查nginx服务状态

通过查看服务器状态判断nginx配置是否存在错误

journalctl -xn

nginx -t

service nginx restart

/etc/init.d/nginx status

如果以下状况说明nginx启动成功

● nginx.service - A high performance web server and a reverse proxy server
	Loaded: loaded (/lib/systemd/system/nginx.service; enabled)
  Drop-In: /etc/systemd/system/nginx.service.d
			└─override.conf
	Active: active (running) since 四 2018-03-15 11:48:09 CST; 3s ago
	  Docs: man:nginx(8)
   Process: 1755 ExecStartPost=/bin/sleep 0.1 (code=exited, status=0/SUCCESS)
   Process: 1751 ExecStart=/usr/sbin/nginx -g daemon on; master_process on; (code=exited, status=0/SUCCESS)
   Process: 1750 ExecStartPre=/usr/sbin/nginx -t -q -g daemon on; master_process on; (code=exited, status=0/SUCCESS)
  Main PID: 1754 (nginx)
    CGroup: /system.slice/nginx.service
			├─1754 nginx: master process /usr/sbin/nginx -g daemon on; master_process on;
			└─1756 nginx: worker process

使用浏览器访问www.linx-info.com和odoo.linx-info.com,看是否能访问公司网页

注意

问题

debian systemd[1]: Failed to read PID from file /run/nginx.pid: Invalid argument

解决方法：

mkdir -p /etc/systemd/system/nginx.service.d
printf "[Service]\nExecStartPost=/bin/sleep 0.1\n" > /etc/systemd/system/nginx.service.d/override.conf
systemctl daemon-reload
systemctl restart nginx.service

6 配置邮件服务器

6.1 安装邮件服务的相关软件

6.1.1 安装mysql数据库

aptitude install mysql-server -y
根据提示设置mysql的root用户的密码,设置为rocky123

6.1.2 安装邮件传输代理软件

aptitude install -y postfix postfix-mysql

选中“Internet Site”确定。
删除默认“debian”，输入linx-info.com确定。

6.1.3 安装IMAP和POP3邮件服务器

aptitude install -y dovecot-core dovecot-imapd dovecot-lmtpd dovecot-mysql

6.1.4 安装php和相关插件

aptitude install -y  php7.0-imap php7.0-mysql php7.0-mcrypt php7.0-intl php-apc php5-memcache php-curl php7.0-gd php-xml-parser php-imap php-mbstring php-fpm php-mysqlnd

6.1.5 安装垃圾邮件过滤软件

aptitude install -y spamassassin

6.1.6 安装邮件杀毒软件

aptitude install -y amavisd-new clamav-daemon clamsmtp zoo unzip bzip2 libnet-ph-perl libnet-snpp-perl libnet-telnet-perl nomarch lzop pax

6.2 为邮件服务创建数据库

创建一个新的mysql数据库

数据库名:postfixdb

数据库用户:root

密码是:rocky123

赋予postfix用户权限。

请使用一下命令

mysql -uroot -p 密码rocky123
create database postfixdb;    创建数据库
grant all on postfixdb.* to 'postfix'@'localhost' identified by 'rocky123'; 赋予权限
exit
mysql -upostfix -p 密码rocky123
show databases;
exit

6.3 创建mailbox的管理用户

6.3.1 创建管理用户

创建一个系统帐号vmail 它属于mail组，家目录是/var/vmail，不支持登录，附加文字为Virtual MailDir Handler

useradd -r -u 150 -g mail -m -d /var/vmail -s /sbin/nologin -c "Virtual MailDir Handler" vmail

6.4 配置dovecot

6.4.1 修改数据库配置文件

修改成/etc/dovecot/dovecot-sql.conf.ext,删除所有的换成一下配置

driver = mysql
connect = host=127.0.0.1 user=postfix password=rocky123 dbname=postfixdb
default_pass_scheme = MD5-CRYPT
password_query = \
 SELECT username as user, password, '/var/vmail/%d/%n' as userdb_home, \
 'maildir:/var/vmail/%d/%n' as userdb_mail, 150 as userdb_uid, 8 as userdb_gid \
 FROM mailbox WHERE username = '%u' AND active = '1'
user_query = \
 SELECT '/var/vmail/%d/%n' as home, 'maildir:/var/vmail/%d/%n' as mail, \
 150 AS uid, 8 AS gid, concat('dirsize:storage=', quota) AS quota \
 FROM mailbox WHERE username = '%u' AND active = '1'

6.4.2 修改认证方式配置文件

修改/etc/dovecot/conf.d/10-auth.conf,搜索auth_mechanisms字段，把那一行修改成一下配置,如auth_mechanisms = plain login,然后搜索auth-system.conf.ext和auth-sql.conf.ext和auth-ldap.conf.ext，对照下面配置进行修改

auth_mechanisms = plain login

#!include auth-system.conf.ext
!include auth-sql.conf.ext
#!include auth-ldap.conf.ext

6.4.3 修改邮件配置文件

修改/etc/dovecot/conf.d/10-mail.conf,搜索mail_location，mail_uid，mail_gid，mail_access_groups，first_valid_uid，last_valid_uid，照着一下配置进行修改，修改mail的目录及相关权限

mail_location = maildir:/var/vmail/%d/%n

mail_uid = vmail
mail_gid = mail

mail_access_groups = mail

first_valid_uid = 150
last_valid_uid = 150

6.4.4 修改ssl证书路径配置文件

修改/etc/dovecot/conf.d/10-ssl.conf,搜索ssl，ssl_cert，ssl_key，照着一下配置修改．dovecot软件使能ssl加密

ssl = yes

ssl_cert = </etc/dovecot/dovecot.pem
ssl_key = </etc/dovecot/private/dovecot.pem

6.4.5 创建添加dovecot证书

检查dovecot目录下是否有dovecot.pem文件,如果有,不需要手动生成,如果没有，手动生成，根据提示将pem文件拷贝对应路径下

apt-get source dovecot
tar xf dovecot_version.orig.tar.gz
cd dovecot-version
cd doc
sh mkcert.sh
cp /etc/ssl/private/dovecot.pem /etc/dovecot/private/
cp /etc/ssl/certs/dovecot.pem /etc/dovecot/

6.4.6 修改dovecot主配置文件

修改/etc/dovecot/conf.d/10-master.conf,搜索lmtp，auth，auth-worker，中的服务内容进行修改，修改对应的权限和用户

service lmtp {
		unix_listener /var/spool/postfix/private/dovecot-lmtp {
				mode = 0600
				user = postfix
				group = postfix
		}
}

service auth {
	unix_listener /var/spool/postfix/private/auth {
		mode = 0666
		user = postfix
		group = postfix
	}
	unix_listener auth-userdb {
		mode = 0600
		user = vmail
		#group = vmail
	}
	user = dovecot
}

service auth-worker {
	user = vmail
}

6.4.7 修改dovecot的lda配置文件

修改/etc/dovecot/conf.d/15-lda.conf,搜索postmaster_address，修改等号后的内容为postmaster@mail.linx-info.com

postmaster_address = postmaster@mail.linx-info.com

6.4.8 更改dovecot和邮箱用户权限

使dovecot和邮箱用户都能读取相应的配置文件内容

chown -R vmail:dovecot /etc/dovecot
chmod -R o-rwx /etc/dovecot

6.4.9 启动服务

systemctl enable dovecot
systemctl restart dovecot
/etc/init.d/dovecot  status

如果是以下状态，说明docecot启动成功

● dovecot.service - Dovecot IMAP/POP3 email server
	Loaded: loaded (/lib/systemd/system/dovecot.service; enabled)
	Active: active (running) since 四 2018-03-15 11:38:03 CST; 14min ago
  Main PID: 494 (dovecot)
	CGroup: /system.slice/dovecot.service
			├─494 /usr/sbin/dovecot -F
			├─564 dovecot/anvil
			├─565 dovecot/log
			└─588 dovecot/config

6.5 配置postfix

6.5.1 检查mysql的监听地址是否为127.0.0.1

查看mysql的监听地址

cat /etc/mysql/my.cnf | grep bind-address
bind-address        = 127.0.0.1

如果没有的话，在/etc/mysql/my.cnf中添加

bind-address        = 127.0.0.1

6.5.2 postfix对mysql进行相关映射

虚拟域的别名映射配置文件

创建/etc/postfix/mysql_virtual_alias_domainaliases_maps.cf

user = postfix
password = rocky123
hosts = 127.0.0.1
dbname = postfixdb
query = SELECT goto FROM alias,alias_domain WHERE alias_domain.alias_domain = '%d' AND alias.address=concat('%u', '@', alias_domain.target_domain) AND alias.active = 1

虚拟别名映射配置文件

创建/etc/postfix/mysql_virtual_alias_maps.cf

user = postfix
password = rocky123
hosts = 127.0.0.1
dbname = postfixdb
table = alias
select_field = goto
where_field = address
additional_conditions = and active = '1'

虚拟域映射配置文件

创建/etc/postfix/mysql_virtual_domains_maps.cf

user = postfix
password = rocky123
hosts = 127.0.0.1
dbname = postfixdb
table = domain
select_field = domain
where_field = domain
additional_conditions = and backupmx = '0' and active = '1'

虚拟邮箱别名的映射配置文件

创建/etc/postfix/mysql_virtual_mailbox_domainaliases_maps.cf

user = postfix
password = rocky123
hosts = 127.0.0.1
dbname = postfixdb
query = SELECT maildir FROM mailbox, alias_domain
  WHERE alias_domain.alias_domain='%d'
  AND mailbox.username=concat('%u', '@', alias_domain.target_domain )
  AND mailbox.active = 1

虚拟邮箱的映射配置文件

创建/etc/postfix/mysql_virtual_mailbox_maps.cf

user = postfix
password = rocky123
hosts = 127.0.0.1
dbname = postfixdb
table = mailbox
select_field = CONCAT(domain, '/', local_part)
where_field = username
additional_conditions = and active = '1'

6.5.3 创建postfix的头部检测配置文件

创建/etc/postfix/header_checks

/^Received:/                 IGNORE
/^User-Agent:/               IGNORE
/^X-Mailer:/                 IGNORE
/^X-Originating-IP:/         IGNORE
/^x-cr-[a-z]*:/              IGNORE
/^Thread-Index:/             IGNORE

6.5.4 把dovecot关联到postfix软件中

修改/etc/postfix/main.cf

vi打开/etc/postfix/main.cf文件．搜索# TLS parameters一行，将这一行及以后行换成一下配置

# TLS parameters
smtpd_tls_cert_file = /etc/ssl/certs/ssl-cert-snakeoil.pem
smtpd_tls_key_file = /etc/ssl/private/ssl-cert-snakeoil.key
smtpd_use_tls = yes
smtpd_tls_session_cache_database = btree:${data_directory}/smtpd_scache
smtp_tls_session_cache_database = btree:${data_directory}/smtp_scache

# See /usr/share/doc/postfix/TLS_README.gz in the postfix-doc package for
# information on enabling SSL in the smtp client.

smtpd_relay_restrictions = permit_mynetworks permit_sasl_authenticated defer_unauth_destination
myhostname = mail.linx-info.com
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases
myorigin = /etc/mailname
mydestination = localhost
relayhost =
mynetworks = 127.0.0.0/8 127.0.0.1 172.17.201.0/24 172.16.0.0/24 172.31.255.0/24 172.16.3.0/24
mailbox_command = procmail -a "$EXTENSION"
mailbox_size_limit = 0
recipient_delimiter = +
inet_interfaces = all
virtual_mailbox_maps = mysql:/etc/postfix/mysql_virtual_mailbox_maps.cf, mysql:/etc/postfix/mysql_virtual_mailbox_domainaliases_maps.cf
virtual_alias_maps = mysql:/etc/postfix/mysql_virtual_alias_maps.cf, mysql:/etc/postfix/mysql_virtual_alias_domainaliases_maps.cf
virtual_mailbox_domains = mysql:/etc/postfix/mysql_virtual_domains_maps.cf
smtpd_tls_auth_only = yes
smtpd_sasl_type = dovecot
smtpd_sasl_path = private/auth
smtpd_sasl_auth_enable = yes
smtpd_recipient_restrictions = reject_unauth_pipelining, permit_mynetworks, permit_sasl_authenticated, reject_non_fqdn_recipient, reject_unknown_recipient_domain, reject_unauth_destination, permit
inet_protocols = ipv4
virtual_transport = lmtp:unix:private/dovecot-lmtp
content_filter = amavis:[127.0.0.1]:10024
receive_override_options = no_address_mappings
message_size_limit = 102400000

6.5.9 打开postfix所需要的功能

修改/etc/postfix/master.cf,打开submission，smtps，amavis等功能，参考一下配置

smtp      inet  n       -       -       -       -       smtpd
#smtp      inet  n       -       -       -       1       postscreen
#smtpd     pass  -       -       -       -       -       smtpd
#dnsblog   unix  -       -       -       -       0       dnsblog
#tlsproxy  unix  -       -       -       -       0       tlsproxy
submission inet n       -       -       -       -       smtpd
  -o syslog_name=postfix/submission
  -o smtpd_tls_security_level=encrypt
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_reject_unlisted_recipient=no
  -o smtpd_client_restrictions=$mua_client_restrictions
  -o smtpd_helo_restrictions=$mua_helo_restrictions
  -o smtpd_sender_restrictions=$mua_sender_restrictions
  -o smtpd_recipient_restrictions=
  -o smtpd_relay_restrictions=permit_sasl_authenticated,reject
  -o milter_macro_daemon_name=ORIGINATING
smtps     inet  n       -       -       -       -       smtpd
  -o syslog_name=postfix/smtps
  -o smtpd_tls_wrappermode=yes
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_reject_unlisted_recipient=no
  -o smtpd_client_restrictions=$mua_client_restrictions
  -o smtpd_helo_restrictions=$mua_helo_restrictions
  -o smtpd_sender_restrictions=$mua_sender_restrictions
  -o smtpd_recipient_restrictions=
  -o smtpd_relay_restrictions=permit_sasl_authenticated,reject
  -o milter_macro_daemon_name=ORIGINATING
amavis unix - - - - 2 smtp
  -o smtp_data_done_timeout=1200
  -o smtp_send_xforward_command=yes

6.5.10 重启相应服务并查看状态

service postfix restart
service postfix status
service dovecot restart
service dovecot status

如果是以下状态，说明postfix启动成功

● postfix.service - LSB: Postfix Mail Transport Agent
	Loaded: loaded (/etc/init.d/postfix)
   Drop-In: /run/systemd/generator/postfix.service.d
			└─50-postfix-$mail-transport-agent.conf
    Active: active (running) since 四 2018-03-15 11:38:20 CST; 16min ago
   Process: 1440 ExecReload=/etc/init.d/postfix reload (code=exited, status=0/SUCCESS)
   Process: 1163 ExecStart=/etc/init.d/postfix start (code=exited, status=0/SUCCESS)
    CGroup: /system.slice/postfix.service
			├─1378 /usr/lib/postfix/master
			├─1452 pickup -l -t unix -u -c
			├─1453 qmgr -l -t unix -u
			├─2082 trivial-rewrite -n rewrite -t unix -u -c
			├─2090 smtpd -n 127.0.0.1:10025 -t inet -u -o content_filter= -o receive_override_options=no_unknown_re...
			├─2091 proxymap -t unix -u
			└─2092 tlsmgr -l -t unix -u -c

6.6 安装和配置网页邮件管理软件

6.6.1 下载安装包

wget http://nchc.dl.sourceforge.net/project/postfixadmin/postfixadmin/postfixadmin-3.0/postfixadmin-3.0.tar.gz

6.6.2 解压到对应路径

tar xf postfixadmin-3.0.tar.gz -C /var/www

6.6.3 postfixadmin关联数据库

修改/var/www/postfixadmin-3.0/config.inc.php,搜索configured，database_type，database_host，database_user，database_password，database_name，domain_path，domain_in_mailbox，修改配置，以下配置进行参考

$CONF['configured'] = true;

$CONF['database_type'] = 'mysqli';
$CONF['database_host'] = 'localhost';
$CONF['database_user'] = 'postfix';
$CONF['database_password'] = 'rocky123';
$CONF['database_name'] = 'postfixdb';

$CONF['domain_path'] = 'NO';
$CONF['domain_in_mailbox'] = 'YES';

6.6.4 修改var目录权限

chmod 777 -R /var
/etc/init.d/nginx restart

6.6.5 创建postfixadmin管理用户

访问https://postfixadmin.linx-info.com/setup.php

点击我已充分了解可能的风险，点击添加例外

您应该看到如下所示的内容：

Testing database connection - OK - mysqli://mysqli://postfix:xxxxx@localhost/postfixdb

在“Setup password”后面的框中输入密码(rocky123)。会提示类似如下：

If you want to use the password you entered as setup password, edit config.inc.php or config.local.php and set

$CONF['setup_password'] = '6441d5a80679a5409ee4c25f3deaeaed:e121e1e5814823cb3276cffd615f2d47d84d8faa';

修改setup_password到配置文件中

将`$CONF['setup_password'] = '6441d5a80679a5409ee4c25f3deaeaed:e121e1e5814823cb3276cffd615f2d47d84d8faa'`替换到`/var/www/postfixadmin-3.0/config.inc.php`文件中的相应位置。（可通过在config.inc.php文件中搜索“setup_password”找到对应位置>）

在setup password:栏中输入rocky123
在admin:栏中输入admin@linx-info.com
在password:栏中输入rocky123
在password(again):栏中输入rocky123
点击add admin按钮

6.7 配置邮件过滤软件

6.7.1 添加邮件过滤用户

adduser spamd --disabled-login

6.7.2 修改spamassassin配置文件

修改/etc/default/spamassassin,将配置换成如下配置,将spamassassin使能

ENABLED=1
OPTIONS="--create-prefs --max-children 5 -d 127.0.0.1 --username spamd --helper-home-dir /home/spamd/ -s /home/spamd/spamd.log"
PIDFILE="/home/spamd/spamd.pid"
CRON=1

6.7.3 添加spamassassin功能到postfix

修改/etc/postfix/master.cf

找到smtp inet n - - - - smtpd,并在下方添加如下内容

    -o content_filter=spamassassin
spamassassin unix  -       n       n       -       -       pipe
   user=nobody argv=/usr/bin/spamc -f -e /usr/sbin/sendmail -oi -f ${sender} ${recipient}

6.7.4 启动服务

systemctl enable spamassassin
systemctl restart spamassassin
systemctl restart postfix
/etc/init.d/postfix status

如果是一下情况说明spamassassin启动成功

● spamassassin.service - Perl-based spam filter using text analysis
	Loaded: loaded (/lib/systemd/system/spamassassin.service; enabled)
	Active: active (running) since 四 2018-03-15 11:38:17 CST; 21min ago
   Process: 2046 ExecReload=/bin/kill -HUP $MAINPID (code=exited, status=0/SUCCESS)
   Process: 509 ExecStart=/usr/sbin/spamd -d --pidfile=/var/run/spamassassin.pid $OPTIONS (code=exited, status=0/SUCCESS)
  Main PID: 2070 (/usr/sbin/spamd)
    CGroup: /system.slice/spamassassin.service
			├─2070 /usr/sbin/spamd -d --pidfile=/var/run/spamassassin.pid --create-prefs --max-children 5 -d 127.0....
			├─2086 spamd child
			└─2087 spamd child

6.8 配置邮件杀毒软件

6.8.1 更新病毒库

/etc/init.d/clamav-freshclam stop
freshclam

6.8.2 编辑clamsmtp配置文件

修改/etc/clamsmtpd.conf,搜索Header:取消注释，搜索User:修改用户，参考以下配置

Header: X-AV-Checked: ClamAV using ClamSMTP
User: clamav

6.8.3 编辑连接过滤模式的配置文件

修改/etc/amavis/conf.d/15-content_filter_mode,把配置文件换成如下配置

use strict;
# You can modify this file to re-enable SPAM checking through spamassassin
# and to re-enable antivirus checking.
#
# Default antivirus checking mode
# Please note, that anti-virus checking is DISABLED by
# default.
# If You wish to enable it, please uncomment the following lines:
@bypass_virus_checks_maps = (
				   \%bypass_virus_checks, \@bypass_virus_checks_acl, \$bypass_virus_checks_re);
#
# Default SPAM checking mode
# Please note, that anti-spam checking is DISABLED by
# default.
# If You wish to enable it, please uncomment the following lines:
@bypass_spam_checks_maps = (
				   \%bypass_spam_checks, \@bypass_spam_checks_acl, \$bypass_spam_checks_re);
1;  # ensure a defined return

6.8.4 编辑amavis系统默认配置文件

修改/etc/amavis/conf.d/20-debian_defaults,参考如下配置

[...]
$QUARANTINEDIR = "$MYHOME/virusmails";
$quarantine_subdir_levels = 1; # enable quarantine dir hashing

$log_recip_templ = undef;    # disable by-recipient level-0 log entries
$DO_SYSLOG = 1;              # log via syslogd (preferred)
$syslog_ident = 'amavis';    # syslog ident tag, prepended to all messages
$syslog_facility = 'mail';
$syslog_priority = 'debug';  # switch to info to drop debug output, etc

$enable_db = 1;              # enable use of BerkeleyDB/libdb (SNMP and nanny)
$enable_global_cache = 1;    # enable use of libdb-based cache if $enable_db=1

$inet_socket_port = 10024;   # default listening socket

$sa_spam_subject_tag = '***SPAM*** ';
$sa_tag_level_deflt  = 2.0;  # add spam info headers if at, or above that level
$sa_tag2_level_deflt = 6.31; # add 'spam detected' headers at that level
$sa_kill_level_deflt = 6.31; # triggers spam evasive actions
$sa_dsn_cutoff_level = 10;   # spam level beyond which a DSN is not sent

[...]
$final_virus_destiny      = D_DISCARD;  # (data not lost, see virus quarantine)
$final_banned_destiny     = D_BOUNCE;   # D_REJECT when front-end MTA
$final_spam_destiny       = D_BOUNCE;
$final_bad_header_destiny = D_PASS;     # False-positive prone (for spam)
[...]

6.8.5 编辑user配置文件

修改/etc/amavis/conf.d/50-user,把配置文件换成如下配置

use strict;

#
# Place your configuration directives here.  They will override those in
# earlier files.
#
# See /usr/share/doc/amavisd-new/ for documentation and examples of
# the directives you can use in this file
#

$pax='pax';
#------------ Do not modify anything below this line -------------
1;  # ensure a defined return

6.8.6 编辑node_id配置文件

修改/etc/amavis/conf.d/05-node_id把配置文件换成如下配置

use strict;

# $myhostname is used by amavisd-new for node identification, and it is
# important to get it right (e.g. for ESMTP EHLO, loop detection, and so on).

chomp($myhostname = `hostname --fqdn`);

# To manually set $myhostname, edit the following line with the correct Fully
# Qualified Domain Name (FQDN) and remove the # at the beginning of the line.
#
$myhostname = "mail.linx-info.com";

1;  # ensure a defined return

6.8.7 杀毒软件关联到postfix

修改/etc/postfix/master.cf

在结尾添加如下内容

scan      unix  -       -       n       -       16      smtp
    -o smtp_send_xforward_command=yes
    -o smtp_enforce_tls=no
127.0.0.1:10025 inet  n -       n       -       16      smtpd
    -o content_filter=
    -o receive_override_options=no_unknown_recipient_checks,no_header_body_checks
    -o smtpd_helo_restrictions=
    -o smtpd_client_restrictions=
    -o smtpd_sender_restrictions=
    -o smtpd_recipient_restrictions=permit_mynetworks,reject
    -o mynetworks_style=host
    -o smtpd_authorized_xforward_hosts=127.0.0.0/8

6.8.8 添加用户和重启服务

adduser clamav amavis
/etc/init.d/amavis restart
/etc/init.d/clamav-daemon restart
/etc/init.d/clamav-freshclam restart
postconf -e 'content_filter = amavis:[127.0.0.1]:10024'
postconf -e 'receive_override_options = no_address_mappings'

6.9 在postfixadmin创建域和创建用户

访问登录管理员账户https://postfixadmin.linx-info.com/

6.9.1 创建域

点击域名清单中的新建域，填写相应信息。

域：linx-info.com
描述：linx
别名数：0
邮箱数：0

6.9.2 创建邮箱用户

点击虚拟用户清单中的新建邮箱，填写相应信息。

用户名：test
密码：rocky123
姓名：test
限制：2000

6.9.3 更改显示一页邮件用户的设置

vi /var/www/postfixadmin-3.0/config.inc.php
$CONF['page_size'] = '1000';

打开浏览器访问postfixadmin@linx-info.com/upgrade.php可生效

6.10 安装和配置roundcube网页邮箱

6.10.1 下载roundcubemail

cd /var/www/
wget https://github.com/roundcube/roundcubemail/releases/download/1.3.3/roundcubemail-1.3.3-complete.tar.gz
tar xf roundcubemail-1.3.3-complete.tar.gz
mv roundcubemail-1.3.3 webmail
chown -R www-data webmail
/etc/init.d/nginx restart

6.10.2 打开浏览器进入roundcube安装界面

打开浏览器访问mail.linx-info.com/installer/index.php

Checking PHP version 必须OK

Checking databases mysql 必须OK

通常设置

mysql授权和roundcubemail相关日志信息

IMAP设置

SMTP设置

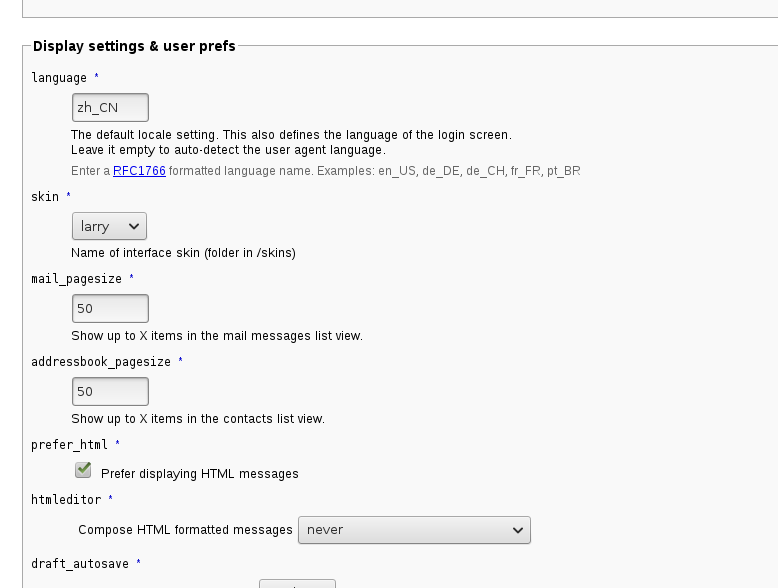

进行显示和用户属性配置

插件选中passwd

点击continue然后进入到测试界面进行测试

点击initialize database按钮

按照图片输入，点击send test mail按钮刷新后显示ok，说明测试成功
按照图片输入，密码为rocky123，点击check login 刷新后显示ok，说明测试成功

6.10.3 对密码插件配置进行修改

只有对密码插件进行修改普通用户才能修改密码

cd /var/www/webmail/plugins/password/
cp config.inc.php.dist config.inc.php

vi config.inc.php

查找password_db_dsn和password_query，修改参数，照以下配置修改

$config['password_db_dsn'] = 'mysql://postfix:rocky123@localhost/postfixdb';
// The SQL query used to change the password.
// The query can contain the following macros that will be expanded as follows:
// %p is replaced with the plaintext new password
// %c is replaced with the crypt version of the new password, MD5 if available
// otherwise DES. More hash function can be enabled using the password_crypt_hash
// configuration parameter.
// %D is replaced with the dovecotpw-crypted version of the new password
// %o is replaced with the password before the change
// %n is replaced with the hashed version of the new password
// %q is replaced with the hashed password before the change
// %h is replaced with the imap host (from the session info)
// %u is replaced with the username (from the session info)
// %l is replaced with the local part of the username
// (in case the username is an email address)
// %d is replaced with the domain part of the username
// (in case the username is an email address)
// Escaping of macros is handled by this module.
// Default: "SELECT update_passwd(%c, %u)"
$config['password_query'] = 'UPDATE mailbox SET password=%c WHERE username=%u';

6.11 测试邮件服务器

6.11.1 通过网页进行测试邮件服务器

从浏览器中访问https://mail.linx-info.com　登录帐号

帐号：test@linx-info.com 密码:rocky123

内网测试

将test@linx-info.com作为收件人进行收发测试

如果能进行正常收发说明好使

外网测试

将XXXXXXX@qq.com作为收件人进行发送测试

从XXXXXXX@qq.com作为发件人，test@linx-info.com为收件人进行接收测试

如果能进行正常收发说明好使

修改密码测试

6.11.2 通过thunderbird进行测试邮件服务器

配置thunderbird邮箱

点击左侧的本地文件夹，在创建新用户下点击电子邮件,点击跳过使用已有的电子邮箱

输入名字，邮箱，和密码，点击继续后，再点击手动进行配置

点击确认安全例外,点击完成

内网测试

将test@linx-info.com作为收件人进行收发测试,点击确认安全例外

如果能进行正常收发说明好使

外网测试

将XXXXXXX@qq.com作为收件人进行发送测试

从XXXXXXX@qq.com作为发件人，test@linx-info.com为收件人进行接收测试

如果能进行正常收发说明好使

6.12 迁移用户数据库和邮件数据

6.12.1 批量添加用户

首先ssh进入旧机器中，到用户目录，收集邮箱用户

cd /var/vmail/
ls > user.lst
vi user.lst
删除user.lst这一行

拷贝user.lst到新机器并执行脚本

cd /var/www/postfixadmin-3.0/scripts/
vi mail.list.sh
#!/bin/bash
for list in `cat $1`
do
	echo "$list"@linx-info.com
	#./postfixadmin-cli mailbox delete "$list@linx-info.com"
	./postfixadmin-cli mailbox add "$list"@linx-info.com --password rocky123 --password2 rocky123 --quota 1000 --name $list
	#./postfixadmin-cli mailbox update "$list"@linx-info.com --password rocky123 --password2 rocky123 --quota 2000 --name $list
	echo $?
	sleep 8
done

bash mail.list.sh user.lst

6.12.2 迁移数据库密码

修改加密方式

修改 /etc/dovecot/dovecot-sql.conf.ext

default_pass_scheme = CRYPT

修改 /var/www/postfixadmin-3.0/config.inc.php

$CONF['encrypt'] = 'mysql_encrypt';

更新数据库密码

ssh登入172.31.255.3的机器上导出旧数据的用户和密码

mysql -u mail_admin -procky -e "use mail;select * from users;" |awk '{print $1 "\t" $2}'  >user-pass.lst

写更新数据库密码脚本

vi change_dbpasswd.sh
#!/bin/bash

IFS=$'\n'
for list in  `cat $1`
do
	user=`echo $list |awk '{ print $1 }'`
	passwd=`echo $list |awk '{ print $2 }'`
	#       mysql -uroot -procky123 -e "show databases;use postfixdb;show tables;select * from mailbox where username=\"test@linx-info.com\""
	mysql -uroot -procky123 -e "use postfixdb;update mailbox set password=\"$passwd\"  where username=\"$user\""
done

执行脚本更新密码

sh change_dbpasswd.sh user-pass.lst

6.12.3 添加群发的邮箱

通过创建别名，实现对邮箱的群发

浏览器输入https://postfixadmin.linx-info.com(帐号admin@linx-info.com密码rocky123)登入进行管理

点击虚拟用户清单，点击新建别名，照着一下填写就行，转到写6.12.1里面的user.lst的用户,点击新建别名按钮

6.12.3 同步邮箱数据

为什么要同步好几次，因为数据过大，要使旧机器和新机器的数据一致，先同步大部分数据，然后进行更新数据．减小停机时间．

开始同步

rsync -aqH root@172.31.255.3:/var/vmail/linx-info.com /var/vmail/

再次同步

rsync -auq root@172.31.255.3:/var/vmail/linx-info.com /var/vmail/

6.13 防病毒测试和垃圾邮件过滤测试

6.13.1 防病毒测试

wget https://secure.eicar.org/eicar.com.txt

把下载的文件eicar.com.txt当附件发送，看是否能发送．接收者邮箱原则上是接收不到的

查看日志有一下信息，说明防病毒测试通过

tail -f /var/log/clamav/clamav.log
...
/var/lib/amavis/tmp/amavis-20180227T101259-25737-XQpYuk9H/parts/p002: Eicar-Test-Signature(44d88612fea8a8f36de82e1278abb02f:68) FOUND

6.13.2 垃圾邮件测试

wget http://spamassassin.apache.org/gtube/gtube.txt

把下载的文件eicar.com.txt当附件发送，看是否能发送，接收邮箱原则上是接收不到的，发送者邮箱会收到一个由邮件服务器发送的邮件"considered unsolicited bulk email说明垃圾过滤测试通过

6.14 调整邮箱的上传附件大小

6.14.1 修改 postfix 中邮件大小的设置

Postfix 是一个邮件传送代理（MTA），因此，要修改配置以使它能传送大附件的邮件。

假设要修改附件大小为 100MB，需对 message_size_limit 和 mailbox_size_limit 做如下修改：

postconf -e message_size_limit='104857600'
postconf -e mailbox_size_limit='104857600'

之后重启 Postfix 服务，使上述修改生效:

/etc/init.d/postfix restart

注意:

104857600 是由 100 (MB) x 1024 (KB) x 1024 (Bit) 计算得到的结果。邮件在发送前会被客户端（Outlook，Thunderbird等）重新编码，导致邮件大小会超过 100MB，所以建议将上述设置中的邮件大小改为 110MB 或 120MB 即可。

如果 mailbox_size_limit 的值比 message_size_limit 小，你会在 Postfix 日志文件里看到这样的错误信息：fatal: main.cf configuration error: mailbox_size_limit is smaller than message_size_limit. 这样你就可以通过客户端正常发送邮件了。

6.14.2 修改 Roundcube 网页邮箱的附件上传大小

如果使用 Roundcube 网页邮箱，需要额外更改两个地方：

修改 PHP 设置允许上传大附件

修改 PHP 配置文件/etc/php/7.0/cli/php.ini和/etc/php/7.0/fpm/php.ini中的 memory_limit， upload_max_filesize 和 post_max_size 三个参数：

memory_limit = 200M;
upload_max_filesize = 100M;
post_max_size = 100M;

修改 Roundcube 网页邮箱设置以允许上传大附件

修改 roundcube 目录下的 .htaccess 文件:

php_value    memory_limit   200M
php_value    upload_max_filesize    100M
php_value    post_max_size  100M

重启php-fpm 服务以使上述修改生效。

/etc/init.d/php7.0-fpm restart

6.14.3 限制 Nginx 上传文件大小

在配置文件/etc/nginx/nginx.conf中找到参数 client_max_body_size ，按需要修改大小：(或在网页配置文件配置里修改/etc/nginx/sites-enabled/mail.linx-info.com)

http {
		...
		client_max_body_size 100m;
		...
}

7 邮件服务器维护(推荐第一种)

7.1 第一种方法:

浏览器访问https://postfixadmin.linx-info.com

帐号admin@linx-info.com密码rocky123

登入进行管理邮箱用户

7.1.1. 创建用户（针对新同事入职)

在虚拟用户清单下点击新建邮箱，然后按要求添加新同事

7.1.2. 修改用户

在虚拟用户清单,在邮箱中找到要修改的邮箱帐户，点击编辑

7.1.3. 删除用户（针对老同事离职）

在虚拟用户清单,在邮箱中找到要删除的邮箱帐户，点击删除

7.2 第二种方法:(有利于批量操作)

7.2.1. 创建用户（针对新同事入职）

cd /var/www/postfixadmin-3.0/scripts/
./postfixadmin-cli mailbox add new@linx-info.com --password rocky123 --password2 rocky123 --quota 2000 --name new (其中new为用户成员，--name后的参数为别名)

7.2.2. 修改用户

./postfixadmin-cli mailbox update list@linx-info.com --password rocky123 --password2 rocky123 --quota 2000 --name list (可以对指定用户的密码，限制大小，别名进行修改)

7.2.3. 删除用户（针对老同事离职）

./postfixadmin-cli mailbox delete "libai@linx-info.com" (删除用户邮箱)
#删除别名成员中删除离职的同事。

7.3 管理群发的邮箱

7.3.1 对别名all@linx-info.com进行管理

通过对别名all@linx-info.com添加或删除，实现对群发邮箱的管理

浏览器输入https://postfixadmin.linx-info.com(帐号admin@linx-info.com密码rocky123)登入进行管理

点击虚拟用户清单，在别名项里点击all@linx-info.com行中有编辑，然后进行添加或删除对应的邮箱

8 问题汇总

8.1 确认安全例外

由于证书过期，目前使用服务器证书，使用时需要确认安全例外．对发件服务和收件服务均需要确认安全例外
测试方法，给自己发邮件，在发送和接收时都会弹出确认安全例外的窗口，点击确认即可，确认安全例外后检测是否正常发收邮件
有些用户的用户不能自动弹出，需要重启客户端，然后安装1,2步骤进行测试

8.2 邮件客户端原有文件夹不显示

有些用户收件箱中的子文件夹不显示，需要订阅一下
可以通过网页进行文件夹管理,登录mail.linx-info.com
点击右上角设置，点击左侧文件夹管理
在文件夹管理中选择需要显示的文件夹
也可在邮件客户端自己查找相关功能

8.3 商务部门外网发送异常

商务部门使用outlook进行发件，发送至外网的邮件会被退信
调试了基本配置，发现没有问题
安装虚拟机，软件环境测试
发件正常，怀疑是配置问题且与网络相关
无法发送外网(应将所有需要转发的网段加入mynetworks)

vi /etc/postfix/main.cf
mynetworks = 127.0.0.0/8 127.0.0.1 172.17.201.0/24 172.16.0.0/24 172.31.255.0/24 172.16.3.0/24

原有邮件服务器配置mynetworks = 127.0.0.0/8,172.16.0.0/24(不清楚为什么没有被退信)

8.4 成都gitlab自动发件功能失效

经排查发现邮件服务器上没有相关的邮箱
成都方面说通过重启路由器恢复正常

8.5 SYN flooding引发网络故障

修改/etc/sysctl.conf配置

net.ipv4.tcp_max_syn_backlog = 4096
net.ipv4.tcp_syn_retries = 2

生效配置

sysctl -p

9 参考网址

http://www.javashuo.com/content/p-5123204.html
https://bbs.aliyun.com/read/300051.html
https://www.rosehosting.com/blog/setup-and-configure-a-mail-server-with-postfixadmin/

10 存档

文档存档

配置软件包存档

55 KiB Raw Permalink Blame History Unescape Escape

1 目的

1.1 搭建域名解析服务器

1.2 对公司网站进行加密服务

1.3 邮件服务器所实现的功能

2 邮件域名和网站服务器

2.1 安装操作系统

2.1.1 分区规划

2.1.2 网络规划

2.2 所使用的软件包

2.2.1 通过软件源来进行下载的软件包

2.2.2 从网站中下载的软件

3 新服务器网络配置和软件源配置

3.1 网络配置

3.2 更改软件源配置和更新软件列表

3.2.1 修改软件源配置

3.2 更新软件列表和操作系统升级

4 安装配置dns服务

4.1 安装bind9

4.2 修改bind9的配置文件

4.2.1 配置bind9的配置文件和域文件

4.2.2 在配置文件上添加rd.in.linx域

4.2.3 创建rd.in.linx.zone域名文件

4.3 测试dns服务器

5 安装配置web服务

5.1 安装nginx网页服务

5.2 生成和配置证书

5.2.1 修改openssl配置

5.2.2 如何生成证书

5.2.3 添加证书

5.3 配置nginx

5.3.1 邮件管理网页的配置

5.3.2 odoo网页代理转发的配置

5.3.3 公司网站代理转发的配置

5.3.4 网页邮箱的网页配置

5.3.5 创建软连接

5.3.6 测试并重启nginx,检查nginx服务状态

6 配置邮件服务器

6.1 安装邮件服务的相关软件

6.1.1 安装mysql数据库

6.1.2 安装邮件传输代理软件

6.1.3 安装IMAP和POP3邮件服务器

6.1.4 安装php和相关插件

6.1.5 安装垃圾邮件过滤软件

6.1.6 安装邮件杀毒软件

6.2 为邮件服务创建数据库

6.3 创建mailbox的管理用户

6.3.1 创建管理用户

6.4 配置dovecot

6.4.1 修改数据库配置文件

6.4.2 修改认证方式配置文件

6.4.3 修改邮件配置文件

6.4.4 修改ssl证书路径配置文件

6.4.5 创建添加dovecot证书

6.4.6 修改dovecot主配置文件

6.4.7 修改dovecot的lda配置文件

6.4.8 更改dovecot和邮箱用户权限

6.4.9 启动服务

6.5 配置postfix

6.5.1 检查mysql的监听地址是否为127.0.0.1

6.5.2 postfix对mysql进行相关映射

6.5.3 创建postfix的头部检测配置文件

6.5.4 把dovecot关联到postfix软件中

6.5.9 打开postfix所需要的功能

6.5.10 重启相应服务并查看状态

6.6 安装和配置网页邮件管理软件

6.6.1 下载安装包

6.6.2 解压到对应路径

6.6.3 postfixadmin关联数据库

6.6.4 修改var目录权限

6.6.5 创建postfixadmin管理用户

6.7 配置邮件过滤软件

6.7.1 添加邮件过滤用户

6.7.2 修改spamassassin配置文件

6.7.3 添加spamassassin功能到postfix

6.7.4 启动服务

6.8 配置邮件杀毒软件

6.8.1 更新病毒库

6.8.2 编辑clamsmtp配置文件

6.8.3 编辑连接过滤模式的配置文件

55 KiB

Raw Permalink Blame History
